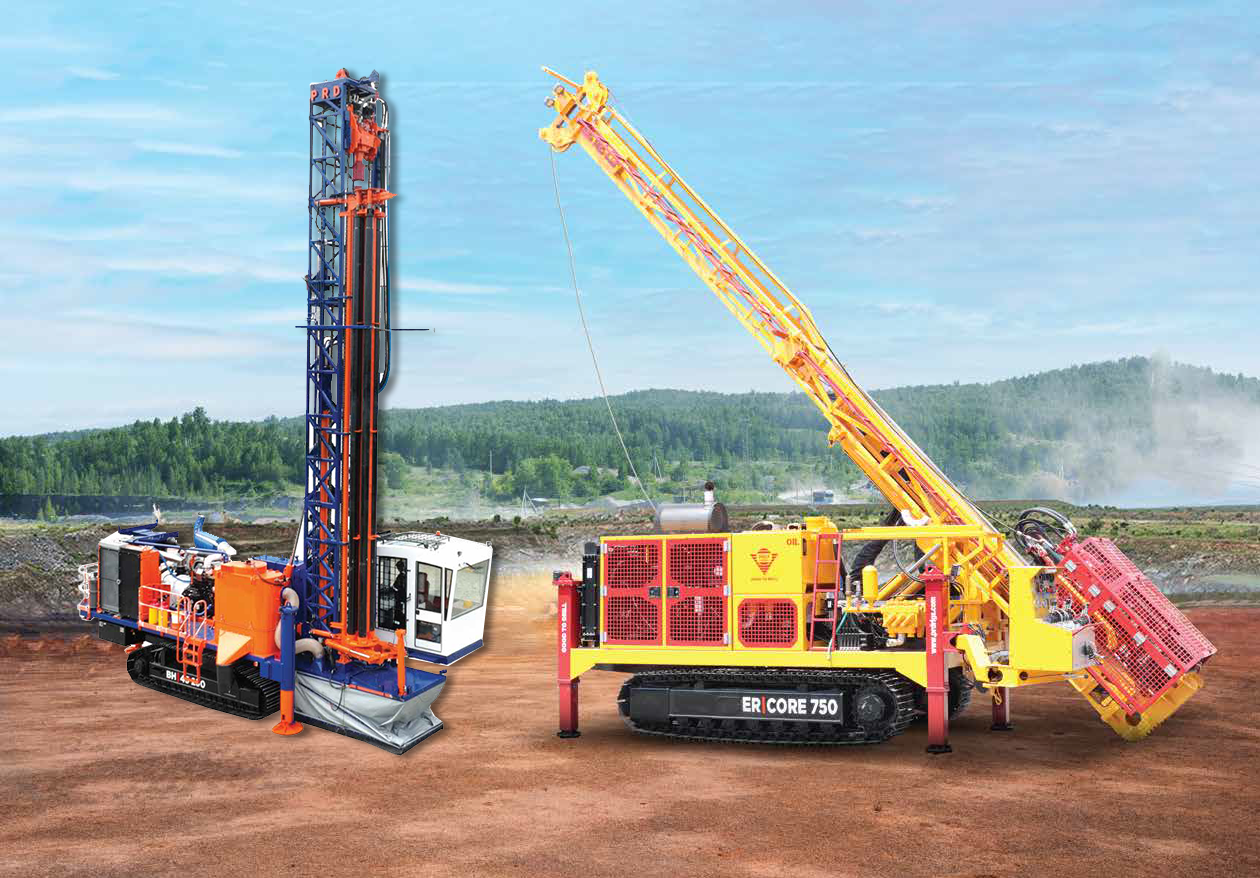

Drilling Rigs
VINDRU is an Authorised Distributor & Reseller of PRD Drilling Rigs, supplying durable, high-performance machines for mineral exploration, geotechnical, mining, and water well applications.
Backed by strong field expertise, we provide complete support — from machine selection to commissioning — ensuring reliable performance across varied ground conditions.

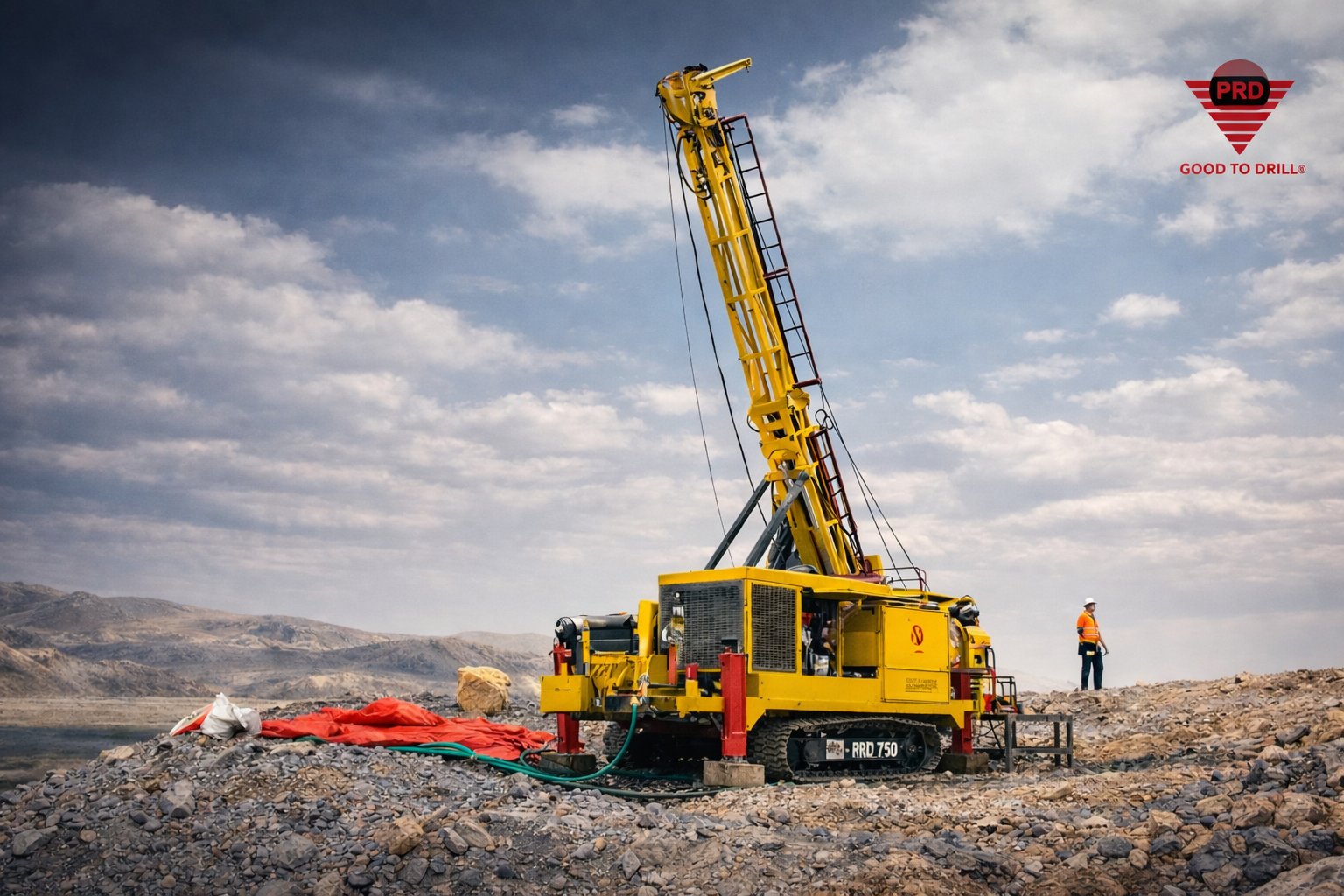

Diamond Core Drilling Rigs
Medium-depth core drilling rig suitable for mineral exploration, geotechnical investigations, and resource identification. Designed for efficient and reliable performance in challenging environments.
| Specification | PRD CORE 300 | PRD CORE 750 |
|---|---|---|
| Application | Surface exploration - Limestone, Coal, Iron ore & other minerals | Surface exploration |
| Drilling Method | Diamond Core | Diamond Core |
| Flushing Medium | Water | Water |
| Drilling Depth | NQ: 300 m; HQ: 200 m; PQ: 100 m | NQ: 750; HQ: 450 m; PQ: 250m |
| Hole Diameter | NQ, HQ, PQ sizes | NQ, HQ, PQ sizes |
| Rotary Head Type | Two speed drill head | Four speed drill head |
| Rotary Head Travel | 3500 mm | 3500 mm |
| Rod Break out method | Hydraulic operated break out systm | Hydraulic operated break out systm |
| Engine - Model | Suitable deck engine | Suitable deck engine |
| Hydraulic system | Hydraulic oil cooler: 70 gpm Hydraulic tank capacity: 300 liters |
Hydraulic oil cooler: 70 gpm Hydraulic tank capacity: 300 liters |
| Dimension | L x B x H: 5400 x 1800 x 2400 mm | L x B x H: 7000 x 2250 x 2700 mm |
| Weight | 7 ton* | 12 ton* |
| Optional features | DTH drilling provision | DTH drilling provision |
| Pull up force | 5800 kgf | 12400 kgf |
| Pull down force | 3500 kgf | 6300 kgf |
| Pull up speed | 27 m/min | 23 m/min |
| Pull down Speed | 45 m/min | 45 m/min |
| Angle Drilling | 45° to 90° manual locks in 5° increments | 45° to 90° manual locks in 5° increments |
| Control panel | Centralized control panel is at the rear end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. | Centralized control panel is at the rear left end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. |
| Torque Speed | 1st Ratio: Torque: 0 - 3074 Nm | Speed: 0 -112 rpm 2nd Ratio: Torque: 0 - 803 Nm | Speed: 0 - 428 rpm 3rd Ratio: Torque: 0 - 330 Nm | Speed: 0 - 1042 rpm |
1st Ratio: Torque: 5100 - 3155 Nm | Speed: 113 - 184 rpm 2nd Ratio: Torque: 2460 - 1509 Nm | Speed: 237 - 386 rpm 3rd Ratio: Torque: 1335 - 819 Nm | Speed: 436 - 711 rpm 4th Ratio: Torque: 776 - 476 Nm | Speed: 750 - 1200 rpm |
| Rod Clamp | Hydraulic-operated Rod clamp has gripping range of PQ, HQ and NQ sizes | Hydraulic-operated Rod clamp has gripping range of PQ, HQ and NQ sizes |
| Winches | Main winch: 3 ton Wireline winch: 1 ton |
Main winch: 7 ton Wireline winch: 2 ton |
| Mud Pump | Hydraulic-operated triplex mud pump Maximum flow: 80 lpm Maximum pressure: 750 psi |
Hydraulic-operated triplex mud pump Displacement: 140 lpm Pressure: 1000 psi |
| Safety features | Guards on all rotating equipment | Guards on all rotating equipment Anti-slip grid mesh on all work platforms Hand rails on all work platforms Emergency stops in the control cabin and on all corners of the machine Heat guards on all exhaust manifolds and piping Whiplash Battery isolator Fire Extinguisher |
| Platform structure | Heavy I and C section welded steel structure covered with chequered plate | Heavy I and C section welded steel structure covered with chequered plate |

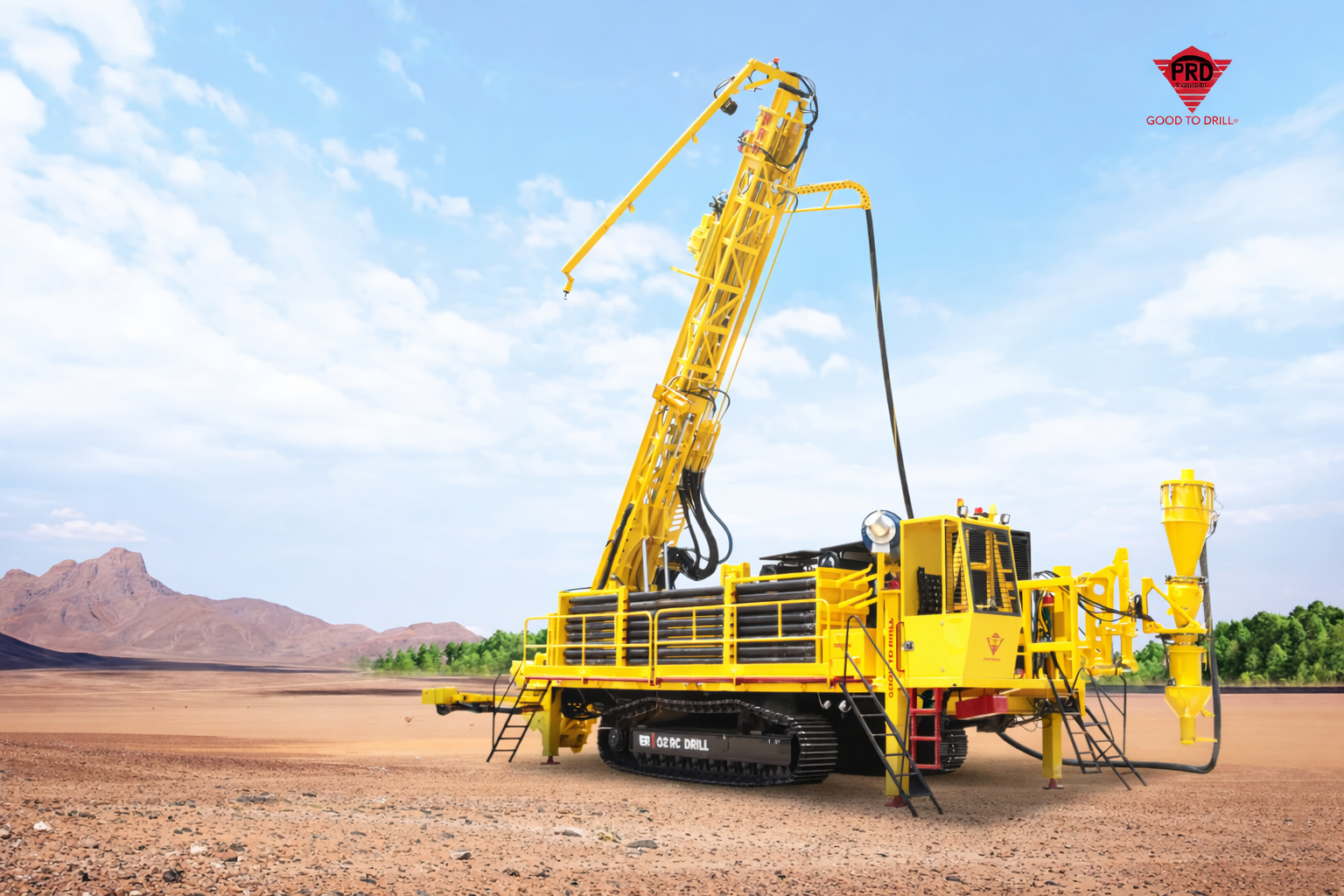

RC Drilling Rigs
Reverse circulation drilling rigs designed for efficient sampling, deeper penetration, and reliable performance across varied terrain conditions.
| Specification | PRD Gold RC | PRD Oz RC |
|---|---|---|
| Application | Surface exploration | Surface exploration |
| Drilling Method | Reverse circulation | Reverse circulation |
| Flushing Medium | Air | Air |
| Drilling Depth | RC : 250 m | RC : 450 m |
| Hole Diameter | RC : 140 mm (5½") | RC : 140 mm (5 ½") |
| Rotary Head Type | Top drive rotary head | RG 62 |
| Rotary Head Travel | 8000 mm | 8000 mm |
| Rod Break out method | SBS 6" Swing in breakout (single) | SBS 6" Swing in breakout (single) |
| Engine - Model | Truck Engine with PTO / Deck engine 360 hp | Truck Engine with PTO / Deck engine 360 hp |
| Hydraulic system | Hydraulic oil cooler: 120 gpm Hydraulic tank capacity: 800 liters |
Hydraulic oil cooler: 120 gpm Hydraulic tank capacity: 800 liters |
| Dimension | L x B x H: 10600 x 2650 x 4000 mm | L x B x H: 12200 x 3200 x 4550 mm |
| Weight | 33 Ton* | 38 Ton* |
| Optional features | Mines safety features Spin cage RC fixed cone splitter |
Mines safety features Spin cage RC fixed cone splitter |
| Pull up force | 16000 kgf (35273 lb.f) | 25800 kgf (56890 lb.f) |
| Pull down force | 10880 kgf (23990 lb.f) | 17700 kgf (39028 lb.f) |
| Pull up speed | 39 m/min | 29 m/min |
| Pull down Speed | 50 m/min | 66 m/min |
| Angle Drilling | 45° to 90° manual locks in 5° increments | 45° to 90° manual locks in 5° increments |
| Control panel | Extended Swing out - Centralized control panel is at the rear end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. | Extended Swing out - Centralized control panel is at the rear end of the equipment for a convenient view of the drill table provided with all necessary gauges, control system, and emergency switch. A locking arrangement is provided for the safety of operator. |
| Torque Speed | Torque : 4000 Nm Speed : 0 - 100 rpm |
Torque : 6545 Nm Speed : 0 - 100 rpm |
| Winches | Survey winch: 0.5 ton | Survey winch: 0.5 ton |
| Safety features | Guards on all rotating equipment Anti-slip grid mesh on all work platforms Hand rails on all work platforms Emergency stops in the control cabin and on all corners of the machine Heat guards on all exhaust manifolds and piping Whiplash Battery isolator Fire Extinguisher |
Guards on all rotating equipment Anti-slip grid mesh on all work platforms Hand rails on all work platforms Emergency stops in the control cabin and on all corners of the machine Heat guards on all exhaust manifolds and piping Whiplash Battery isolator Fire Extinguisher |
| Platform structure | Heavy I and C section welded steel structure covered with chequered plate | Heavy I and C section welded steel structure covered with chequered plate |
| Rod Handling Method | PRD EZ rod handling | Option 1: PRD EZ rod handling Option 2 : PRD RED 180 Rod handling |
| Sampling System | Advanced cyclone with adjustable split static cone splitter | Advanced cyclone with adjustable split static cone splitter |
| Jib Boom arm | Jib boom arm is provided for handling drill rods during Angle drilling | Jib boom arm is provided for handling drill rods during Angle drilling |
| Rod Bin | 32 nos x 6 m = 192 m | 32 nos x 6 m = 192 m |
| RC attachments | RC head, RC hose Top swivel Bottom entry air swivel Deflector box Blow up / down unit |
RC head, RC hose Top swivel, Bottom entry air swivel Deflector box Blow up / down unit |
| Air Compressor | 1200 cfm - 330 psi | 1250 cfm / 350 - 500 psi |
Blast Hole Drilling Rigs
Designed for high-performance blast hole drilling in mining, quarrying, and large infrastructure projects. Built for durability, depth accuracy, and efficient operation in demanding environments.
| Specification | PRD BH 30 160 | PRD BH 45 250 | PRD MAXDRILL 4000 |
|---|---|---|---|
| Application | BLAST HOLE DRILLING IN OPEN CAST MINES | BLAST HOLE DRILLING IN OPEN CAST MINES | De-watering holes De-watering and monitoring holes in the mines Cathodic protection |
| Drilling Method | DTH | DTH / Rotary | DTH / Rotary Drilling |
| Flushing Medium | Air | Air / Water | Air / Water |
| Drilling Depth | 37 m | 45 m | 1350 meters |
| Hole Diameter | 165 - 203 mm (6 ½" - 8") | 150 - 250 mm (5.9" - 9.8") | 165 - 610 mm (6 ½"- 24") |
| Rotary Head Type | Top drive head | RG 62 - top drive head | Top drive rotary head |
| Rotary Head Travel | 9800 mm | 9240 mm | 7500 mm |
| Rod Break out method | Hydraulic operated rod breakout | Hydraulic operated rod breakout | Hydraulic operated breakout system |
| Engine - Model | Suitable deck engine - 430 hp | 410 - 486 kW | Suitable Deck Engine - 430 hp |
| Hydraulic system | Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 850 liters |
Hydraulic Oil Cooler : 120 gpm Hydraulic Tank Capacity : 850 litres |
Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 950 litres |
| Dimension | L x B x H: 13600 x 3770 x 4900 mm | l x b x h: 14000 x 5800 x 5200 mm | - |
| Optional features | Centralised lubrication system Dust suppression system Fast fuel filling system Tramming vision camera GPS & Data monitoring system Auto leveling Depth & Angle indication MI digital display system PRD i-Drill interface |
- | ICE Package Mine safety features Tilting rotary head with easy rod handling |
| Pull up force | 11000 kg | 11000 kgf | 42200 kgf |
| Pull down force | 28000 kg | 28000 kgf | 18500 kgf |
| Pull up speed | 41 m/min | 64 m/min | 42 m/min |
| Pull down Speed | 20 m/min | 38 m/min | 70 m/min |
| Control panel | A spacious control panel is provided with all necessary gauges, a control system, and an emergency switch. | A spacious control panel is provided with all necessary gauges, control system and emergency switch. | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. |
| Torque Speed | Torque: 5000 Nm Speed : 0 - 140 rpm |
Torque : 9000 Nm Speed : 0 - 140 rpm |
Torque: 13700 Nm Speed: 0 - 120 rpm |
| Mud Pump | - | - | Hydraulic operated PRD 250 Mud Pump (10" x 7") |
| Safety features | Emergence push button Walkways and railings Auto fire detection and suppression system Ladder on mast Rod catcher |
Emergence push button Walkways and railings Auto fire detection and suppression system Ladder on mast Rod catcher |
Walkways and Handrails Rod fall protection system |
| Platform structure | Heavy I and C section welded steel structure covered with 5 mm chequered plate | Heavy I and C section welded steel structure covered with 5 mm chequered plate | Heavy I and C section welded steel structure covered with 5mm chequered plate |
| Rod Handling Method | Rod Carousel | Rod Carousel | - |
| Air Compressor | - | - | Make: ELGI / Atlas Copco / Doosan Compressor capacity 1200 cfm - 330 psi (24 bar) 1500 cfm - 400 psi (27 bar) 1270 cfm - 365 psi (25 bar) / 425 psi (29 bar) |
| Single pass depth | 9.1 m | 9.1 m | - |
| Weight on bit | 15800 kgf (max) | 30000 kgf (max) | - |
| Mast overall length | 13600 mm | 12.8 m | 11000 mm |
| Rod Carousel | 3 + 1 rod carousel | 4 rod carousel | - |
| dust collector | Flow capacity: 2100 cfm No of filters: 4 nos |
Flow capacity: 2100 cfm No of filters: 4 nos |
- |
| Rod diameter | 147 mm 4 1/2" (2 7/8" API thread) 193 mm 5" (3 1/2" BECO thread) |
- | - |
| Tank capacities | Fuel tank: 900 litres Water tank: 750 litres Hydraulic tank: 850 litres |
Fuel tank: 1250 ltr Water tank: 970 ltr Hydraulic tank: 250 ltr |
- |
| Cabin features | Ergonomically designed wrap-around console HVAC Cabin Two hinged and locable doors Falling Object Protective System (FOPS) Top-mounted air conditioning Adjustable suspension swivel seat with seat belt |
Ergonomically designed wrap-around console HVAC Cabin Two hinged and locable doors Falling Object Protective System (FOPS) Top mounted air conditioning Adjustable suspension swivel seat with seat belt |
- |
| Undercarriage features | Shoe width: 550 mm Track make: PRD T30-4 Ground contact: 3000 mm Track pad: Triple bar grouser |
Shoe width: 600 mm Track make: PRD 50T Ground contact: 3850 mm Track pad: Triple bar grouser |
- |
| Levelling jacks | - | 3 x Hydraulic levelling jacks | - |
| Inclination angles | - | 60 - 90 deg | - |
| Mounting | - | - | Truck / Crawler / Skid / Trailer |
| Rod handling length | - | - | 6 m |
| Centraliser Opening | - | - | Centralizer Opening: 16 "(406 mm) Expandable: 24" (610 mm) Split type |
| Truck Option | - | - | SINOTRUK Howo 6x6 / 8x4 MAN 6x4 / 6x6 Min 30 ton GVW Truck |

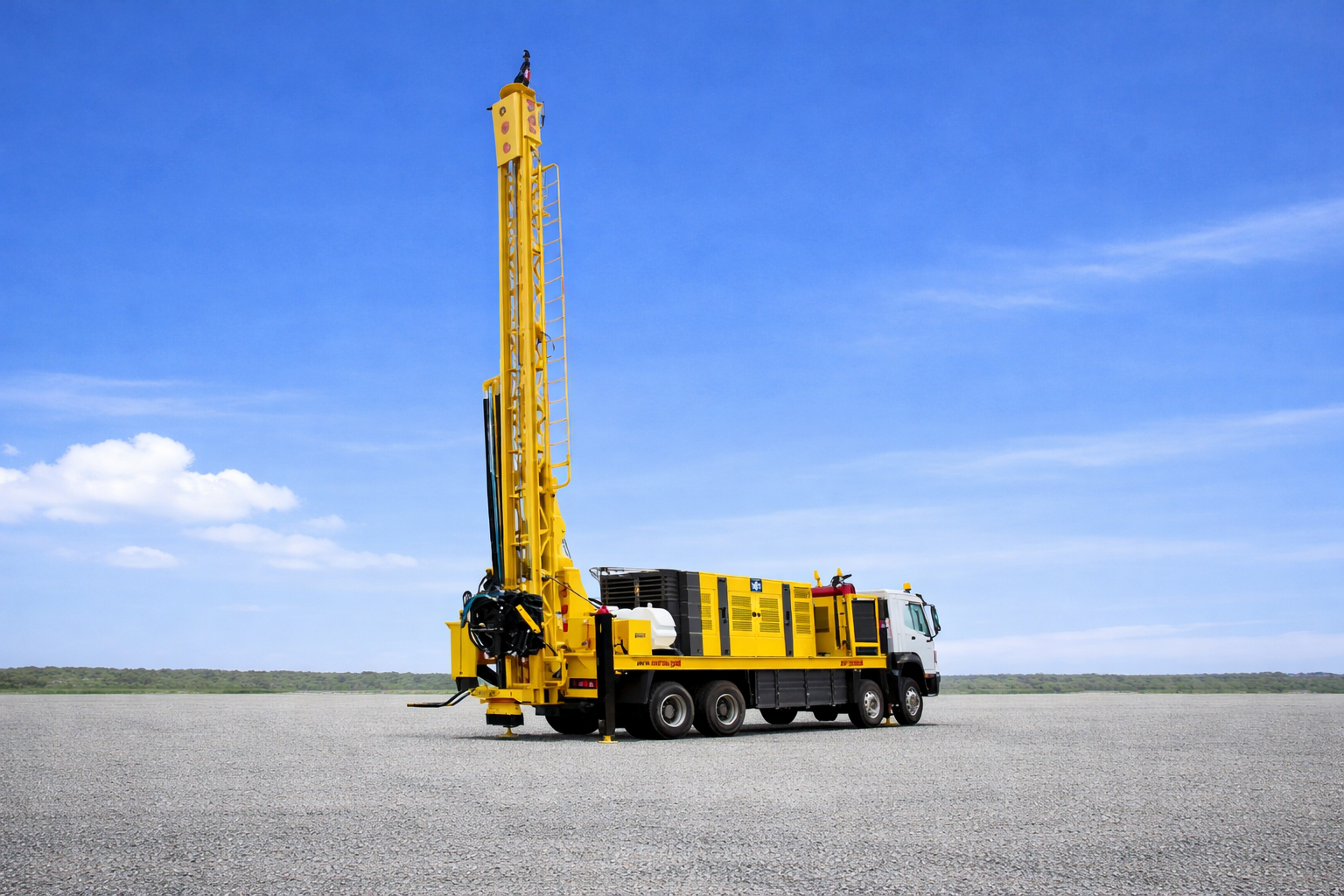

Water Well Drilling Rigs
Designed for efficient groundwater extraction and borewell drilling. Built for durability, depth performance, and reliable operation in demanding terrain conditions.
| Specification | PRD MAXDRILL 4000 | PRD Speed Star | PRD OZ DRILL |
|---|---|---|---|
| Application | De-watering holes De-watering and monitoring holes in the mines Cathodic protection |
Domestic Water Wells | Cathodic Protection De-watering holes Monitoring holes Irrigation |
| Drilling Method | DTH / Rotary Drilling | DTH / Rotary Drilling | DTH / Rotary Drilling |
| Flushing Medium | Air / Water | Air / Water | Air / Water |
| Drilling Depth | 1350 meters | 363 meters | 750 meters |
| Hole Diameter | 165 - 610 mm (6 ½"- 24") | 165 - 305 mm (6 ½" - 12") | 165 - 508 mm (6 ½" - 20") |
| Rotary Head Type | Top drive rotary head | Top drive rotary head | Top drive rotary head |
| Rotary Head Travel | 7500 mm | 7050 mm | 7000 mm |
| Rod Break out method | Hydraulic operated breakout system | Hydraulic operated breakout system | Hydraulic operated breakout system |
| Engine - Model | Suitable Deck Engine - 430 hp | Suitable Deck Engine 180 hp | Suitable Deck Engine - 260 hp |
| Hydraulic system | Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 950 litres |
Hydraulic Oil Cooler: 70 gpm Hydraulic Tank Capacity: 600 litres |
Hydraulic Oil Cooler: 120 gpm Hydraulic Tank Capacity: 850 litres |
| Optional features | ICE Package Mine safety features Tilting rotary head with easy rod handling |
Hammer opener: Hydraulic operated hammer device Rod Carousel: 4 Carousel rod changer GPS and fuel monitoring system |
- |
| Pull up force | 42200 kgf | 10000 kgf | 25800 kgf |
| Pull down force | 18500 kgf | 7300 kgf | 17700 kgf |
| Pull up speed | 42 m/min | 39 m/min | 46 m/min |
| Pull down Speed | 70 m/min | 58 m/min | 67 m/min |
| Control panel | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. | Swing out centralized control panel is at rear end of the equipment for convenient view of drill table provided with all necessary gauges, control system and emergency switch. Locking arrangement is provided for the safety of control panel. |
| Torque Speed | Torque: 13700 Nm Speed: 0 - 120 rpm |
Torque: 4020 Nm Speed: 0 - 100 rpm |
Torque: 9000 Nm Speed: 0 - 100 rpm |
| Mud Pump | Hydraulic operated PRD 250 Mud Pump (10" x 7") | Hydraulic operated PRD 150 Mud Pump (6" x 6") | Option 1: Hydraulic / Engine operated PRD 200 Mud Pump (8" x 6") Option 2 : Hydraulic operated PRD 250 Mud Pump (10" x 7") |
| Safety features | Walkways and Handrails Rod fall protection system |
Walkways and Handrails Rod fall protection system |
Walkways and Handrails Rod fall protection system |
| Platform structure | Heavy I and C section welded steel structure covered with 5mm chequered plate | Heavy I and C section welded steel structure Covered with 5mm chequered plate |
Heavy I and C section welded steel structure covered with 5mm chequered plate |
| Rod Handling Method | - | Option 1 - Auto rod handler Option 2 - RED 180 Option 3 - EZ Rod handling Option 4 - Single rod changer |
Option 1 - Auto rod handler Option 2 - RED 180 Option 3 - EZ Rod handling Option 4 - Single rod changer |
| Air Compressor | Make: ELGI / Atlas Copco / Doosan Compressor capacity 1200 cfm - 330 psi (24 bar) 1500 cfm - 400 psi (27 bar) 1270 cfm - 365 psi (25 bar) / 425 psi (29 bar) |
Make: ELGI / Atlas Copco / Doosan Compressor capacity 1100 cfm - 300 psi (21 bar) 1200 cfm - 330 psi (24 bar) |
Make: ELGI / Atlas Copco / Doosan Compressor capacity 1200 cfm - 330 psi (24 bar) 1500 cfm - 400 psi (27 bar) 1270 cfm - 365 psi (25 bar) / 425 psi (29 bar) |
| Mast overall length | 11000 mm | 8000 mm | 10500 mm |
| Mounting | Truck / Crawler / Skid / Trailer | Truck / Crawler / Skid | Truck / Crawler / Skid / Trailer |
| Rod handling length | 6 m | 5 m | 5 m / 6 m |
| Centraliser Opening | Centralizer Opening: 16 "(406 mm) Expandable: 24" (610 mm) Split type |
13" (330 mm) | Centralizer Opening: 16" (406 mm ) Expandable: 21" (533 mm) Split type |
| Truck Option | SINOTRUK Howo 6x6 / 8x4 MAN 6x4 / 6x6 Min 30 ton GVW Truck |
SINOTRUK Howo 6x4 / 6x6 Ashok Leyland 2518 6x4 MAN 6x4 / 6x6 |
SINOTRUK Howo 6x6 / 6x4 / 8x4 MAN 6x6 / 6x4 Min 25 ton GVW Truck |
Exploration Drilling Rigs
Advanced exploration rigs for mineral prospecting and geological surveys.
| Model | Drilling Depth | Hole Diameter | Power | Application |
|---|---|---|---|---|
| EX-800 | 800m | 75-150mm | 100 HP | Mineral Exploration |
| EX-1200 | 1200m | 100-200mm | 160 HP | Deep Exploration |
Geotechnical Drilling Rigs
Specialized rigs for soil investigation, foundation testing, and construction projects.
| Model | Drilling Depth | Hole Diameter | Power | Application |
|---|---|---|---|---|
| GT-200 | 200m | 100-200mm | 60 HP | Soil Investigation |
| GT-400 | 400m | 150-300mm | 110 HP | Foundation Testing |

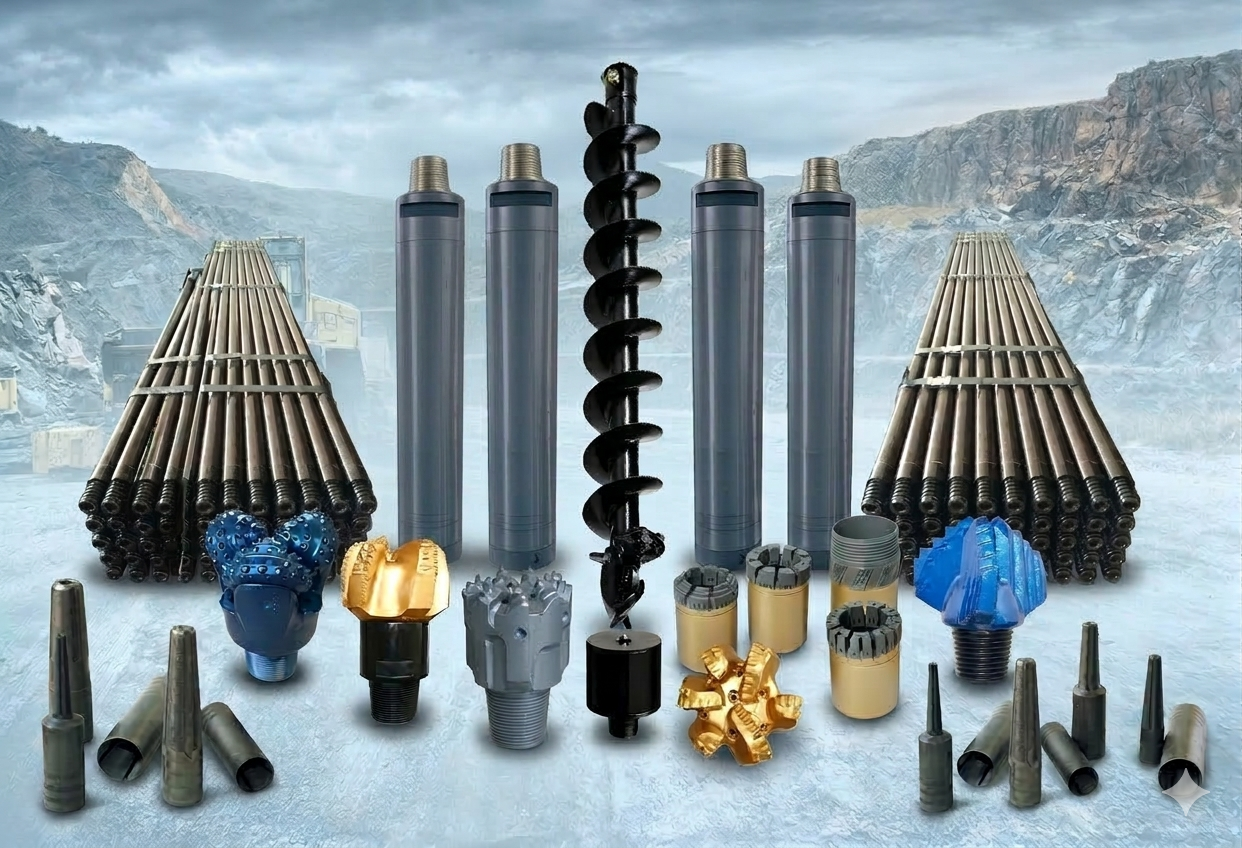

Drilling Tools & Consumables
VINDRU supplies a complete range of drilling bits, hammers, rods, and accessories, engineered for reliable penetration, stable hole quality, smooth drilling operations, and consistent core recovery across varying ground conditions, with long service life.
DTH Hammers
Our DTH hammers are engineered for high-impact energy, efficient air flow, and consistent performance, even in deep or hard formations.
Key Benefits
- High penetration in hard rock
- Reduced air consumption
- Long piston and wear part life
- Stable drilling with minimal vibration
| DTH Hammers Size Range | Typical Bit Size Range |
|---|---|
| 2" | 2¾" – 3½" |
| 3" | 3½" – 4" |
| 4" | 4½" – 5" |
| 5" | 5½" – 6" |
| 6" | 6½" – 8" |
| 8" | 8½" – 10" |
| 10" | 10½" – 12" |
| 12" | 12½" – 14" |
Larger hammer sizes and custom configurations are available on request, based on customer requirements and specific drilling applications.
Drill Bits
VINDRU supplies a wide range of diamond core and DTH drilling bits designed for reliable penetration, stable hole quality, and long service life across varying ground conditions
| Bit Type | Size Range |
|---|---|
| Diamond Core Bits | AQ, BQ, NQ, HQ, PQ |
| Diamond Core Shoe Bits | AQ, BQ, NQ, HQ, PQ |
| DTH Button Bits | 2", 3", 4", 5", 6", 8", 10", 12" |
| Rotary Tricone, PDC, Drag Bits | 4½" – 12¼" |
Drill Rods
VINDRU supplies a comprehensive range of drill rods and drilling pipes engineered for strength, durability, and reliable field performance across all major drilling applications.
| Drill Rod Type | Sizes |
|---|---|
| Core Drilling Rods | AQ, BQ, NQ, HQ, PQ |
| DTH Drill Pipes | 3½", 4", 4½" |
| RC Drill Pipes | 3½", 4", 4½" |
| Top Hammer Drill Rods | T38, T45, T51, GT60 |
| Auger Drill Rods | 60 mm – 150 mm |
| Casing Pipes | Matching drilling sizes |

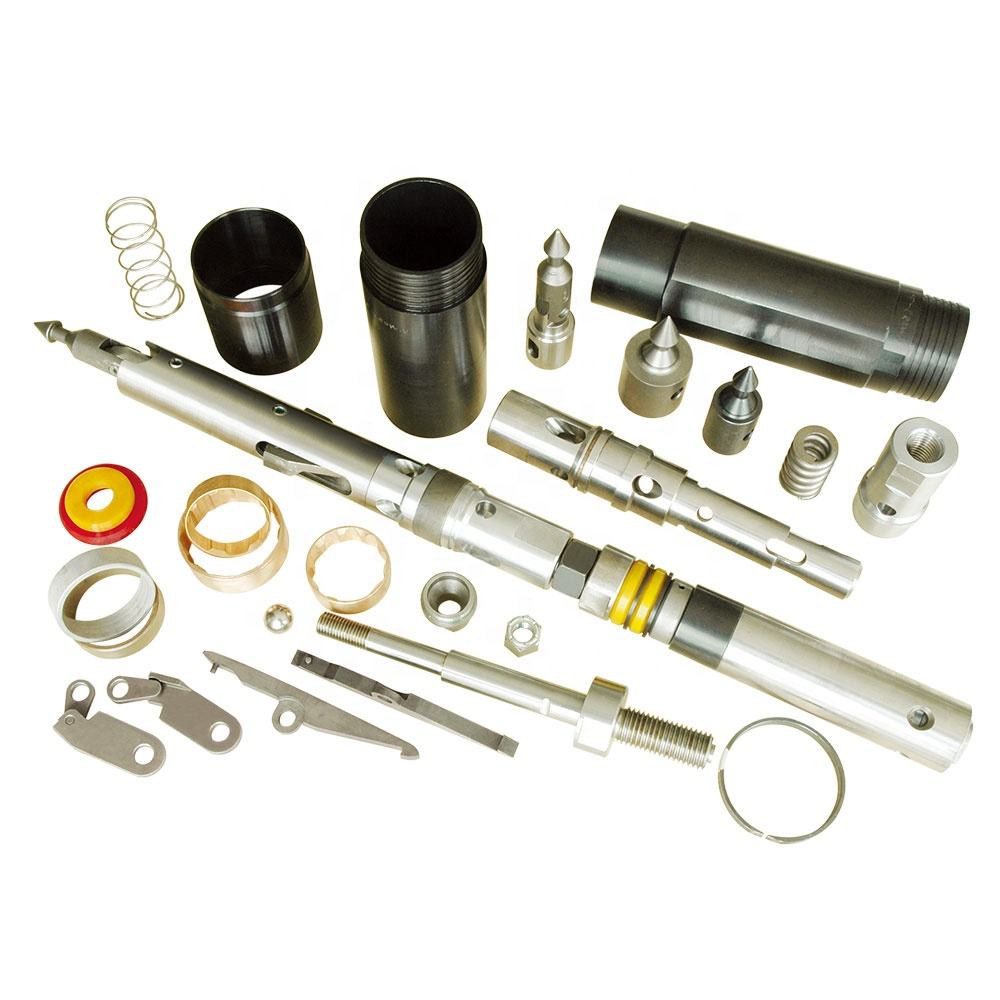

Core Accessories
VINDRU supplies a complete range of diamond core drilling accessories designed to support smooth drilling operations and reliable core recovery.
| Product Range |
|---|
| Single Tube, Double Tube, and Triple Tube Core Barrels |
| Wireline Core Barrel Systems (AQ, BQ, NQ, HQ, PQ) |
| Inner Tubes – standard and long |
| Outer Tubes – standard and heavy-duty |
| Head Assemblies – standard and high-flow |
| Core Lifters and Core Lifter Cases |
| Overshots and Landing Rings |
| Stabilizers – standard and reaming types |

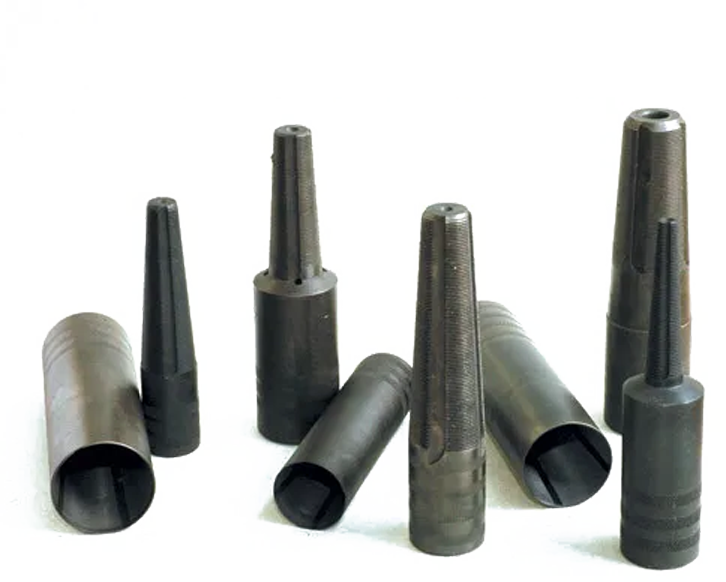

Fishing Tools
VINDRU supplies a reliable range of fishing tools used for the recovery of lost, broken, or stuck drilling equipment, helping reduce non-productive time and maintain drilling continuity.
| Product Range |
|---|
| Overshots |
| Spear assemblies |
| Taps and subs |
| Junk baskets |
| Fishing magnets |
| Washover tools and accessories |

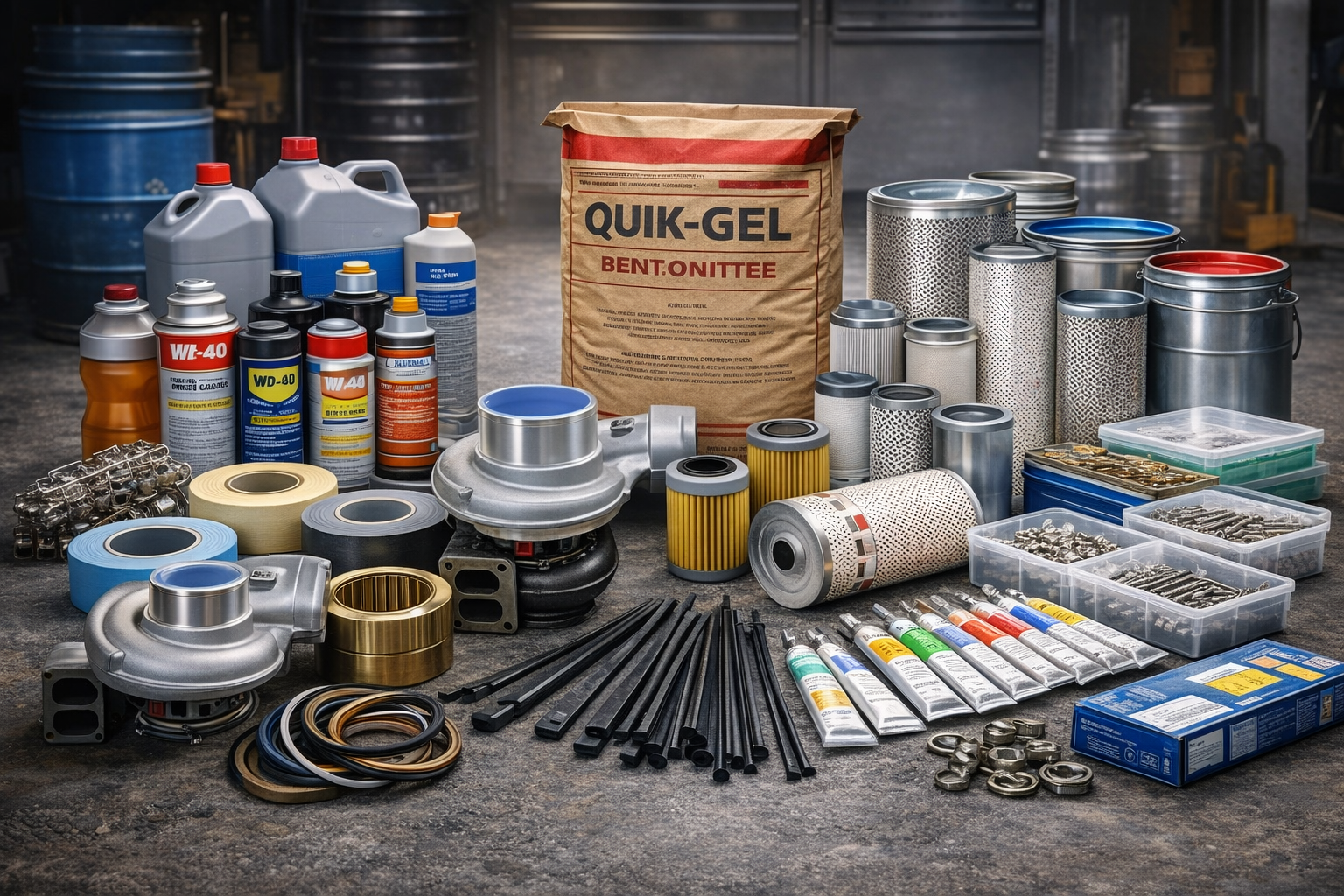

Drilling Fluids & Additives
VINDRU provides all types of drilling fluids and additives designed to support stable and efficient drilling across varying ground conditions.
| Available Solutions |
|---|
| Bentonite-based drilling fluids |
| Polymer drilling fluids |
| Foam systems |
| Lubricants and friction reducers |
| Specialty additives for difficult formations |

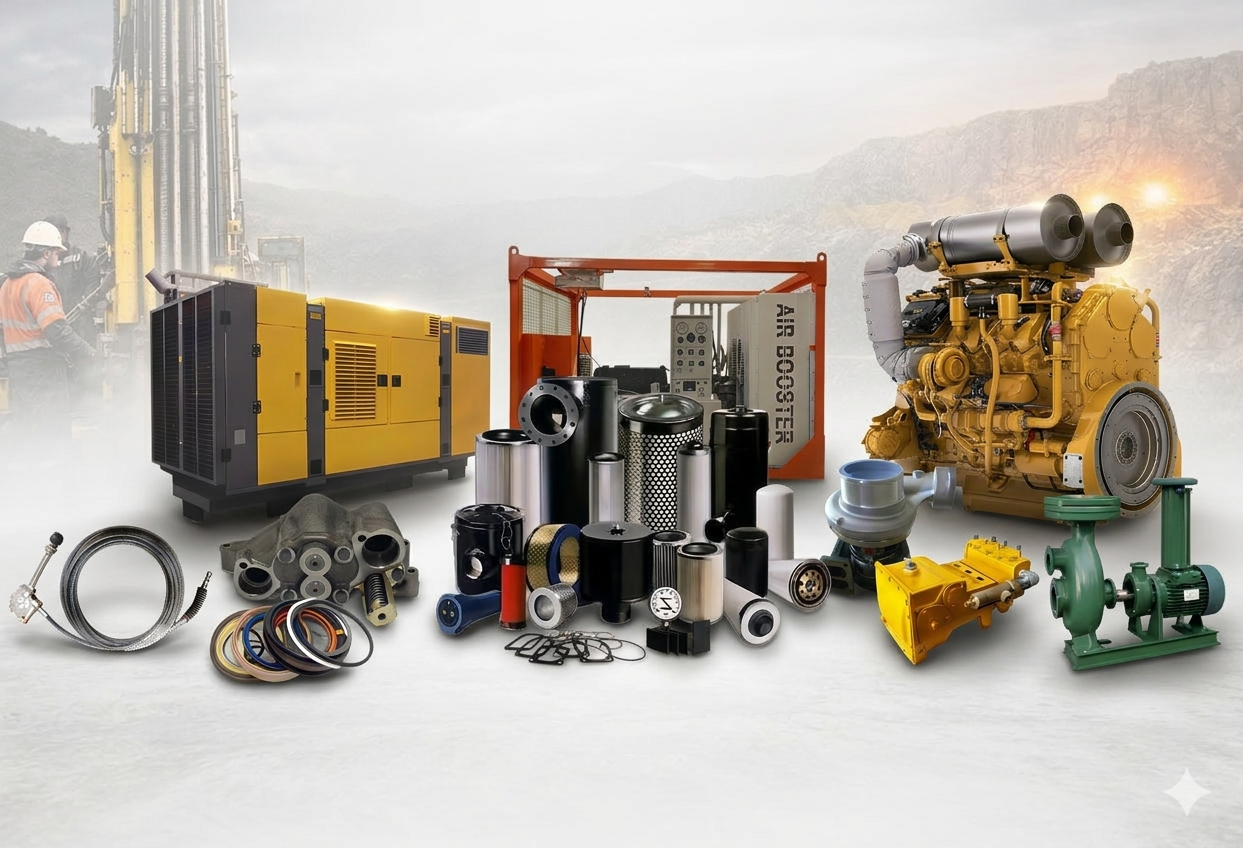

Components & Accessories
VINDRU supplies a range of air compressors, booster systems, industrial engines and water pumps, designed to support drilling operations across exploration, geotechnical, mining, water well, and construction projects.
.png)

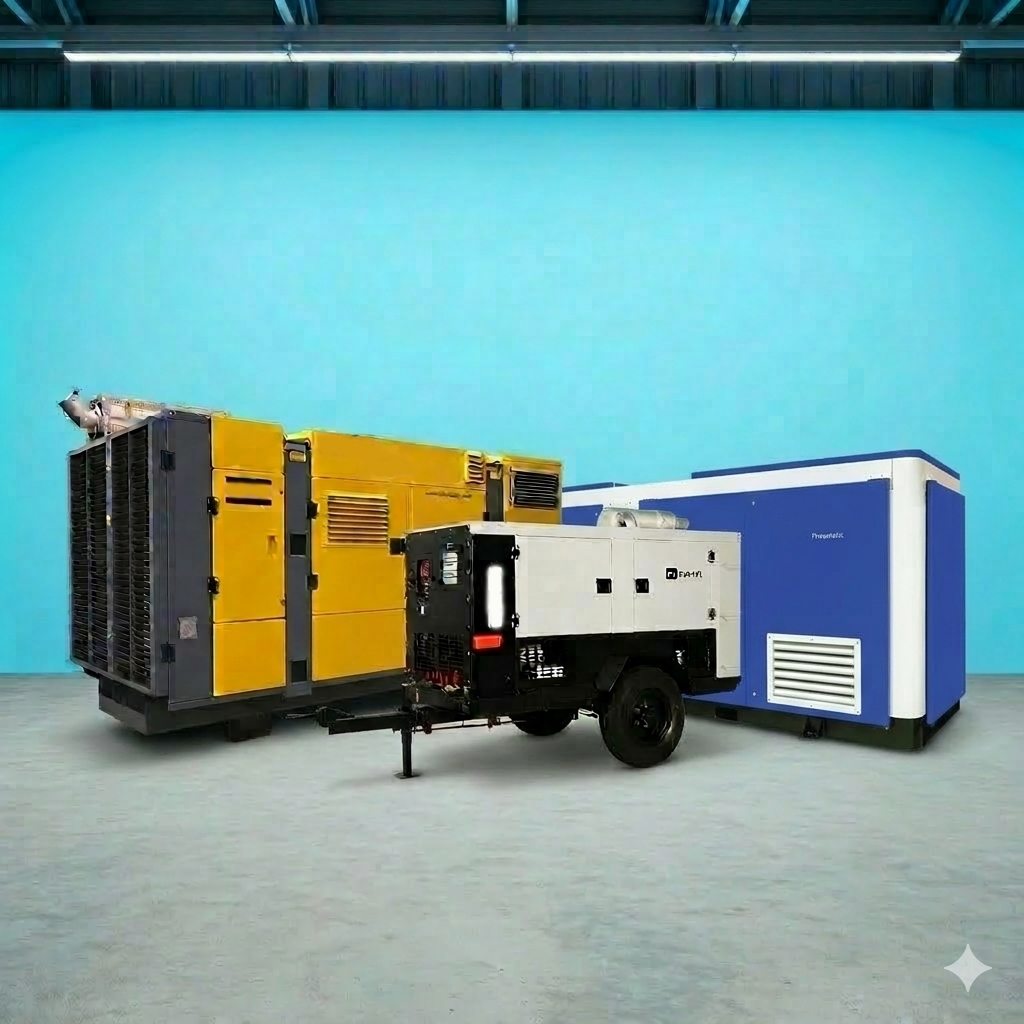

Air Compressors
VINDRU supplies a range of air compressors designed to support drilling operations across exploration, geotechnical, mining, water well, and construction projects.
| Compressor Range | Value |
|---|---|
| Free Air Delivery (CFM) | 380 - 1500 |
| Pressure (PSI) | 150 - 425 |

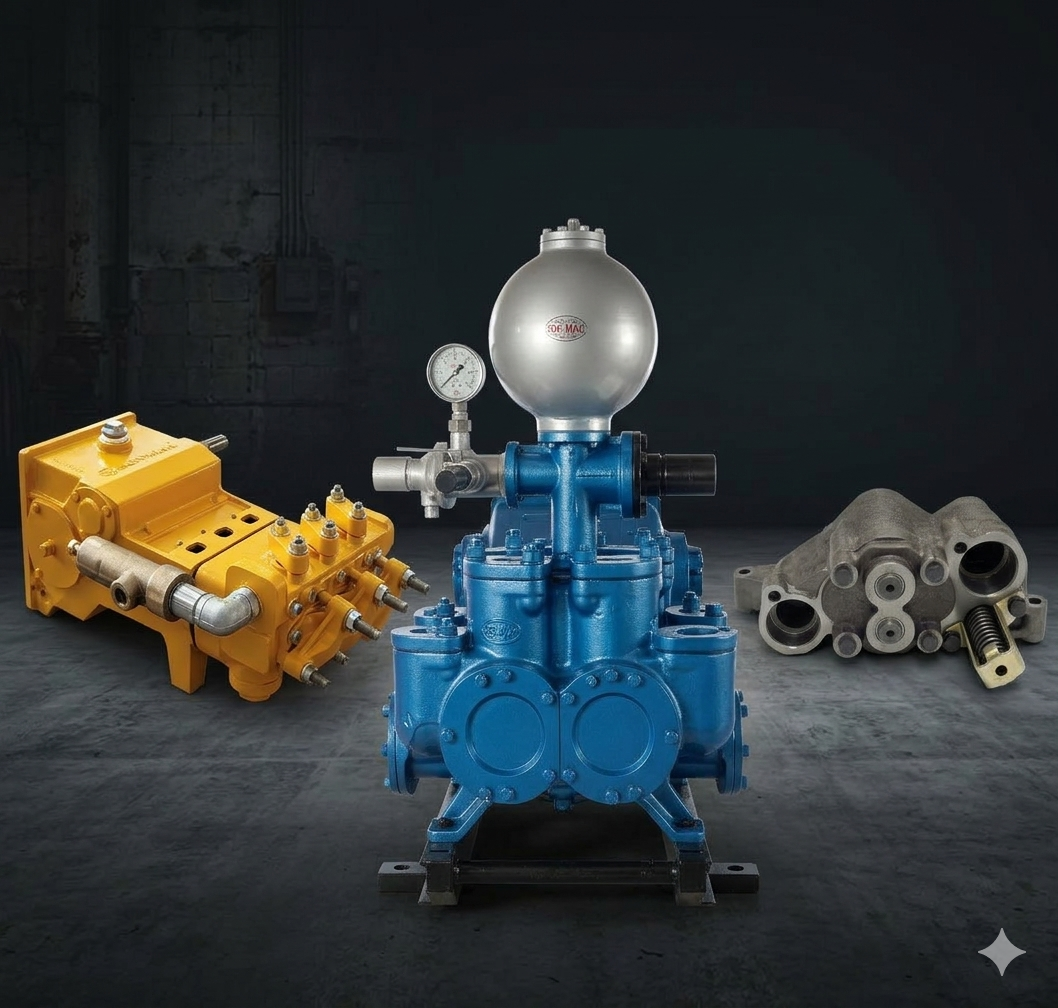

Water Pumps
VINDRU supplies reliable piston and centrifugal water pumps designed to support drilling operations where consistent water flow, pressure, and durability are critical.
Duplex Double Acting Piston Mud Pump
| Stroke | Liner Size | Displacement (LPM) | Max Pressure (kg/cm²) |
|---|---|---|---|
| 5" (127 mm) | 4½" (114 mm) | 435 – 665 | 18 – 10 |
| 6" (152 mm) | 6" (152 mm) | 477 – 915 | 35 – 18 |
| 8" (203 mm) | 6" (152 mm) | 570 – 1333 | 45 – 20 |
| 10" (254 mm) | 7" (178 mm) | 782 – 1980 | 50 – 20 |
Centrifugal Mud Pump
| Discharge (LPM) | Engine Power (HP) | Delivery / Suction Size (mm) |
|---|---|---|
| 600 | 10 | 65 / 75 |
Triplex Water Pump
| Flow capacities | From low to high LPM ranges |
| Pressure ratings | Up to 60 bar (870 psi) and above |
Boosters & Engines
VINDRU supplies a range of booster systems and engine designed to support drilling operations across exploration, geotechnical, mining, water well, and construction projects.
BOOSTER Options
| Booster Type | Max Suction Pressure | Max Discharge Pressure | Capacity at Max Suction |
|---|---|---|---|
| 4-Cylinder Reciprocating | 350 PSI / 24 bar | 1000 PSI / 69 bar | 1300 dm³ / 37 m³/min / 614 L/sec |
Engine Options
Cumins, CAT, VOLVO – Mechanical and electronic engines.

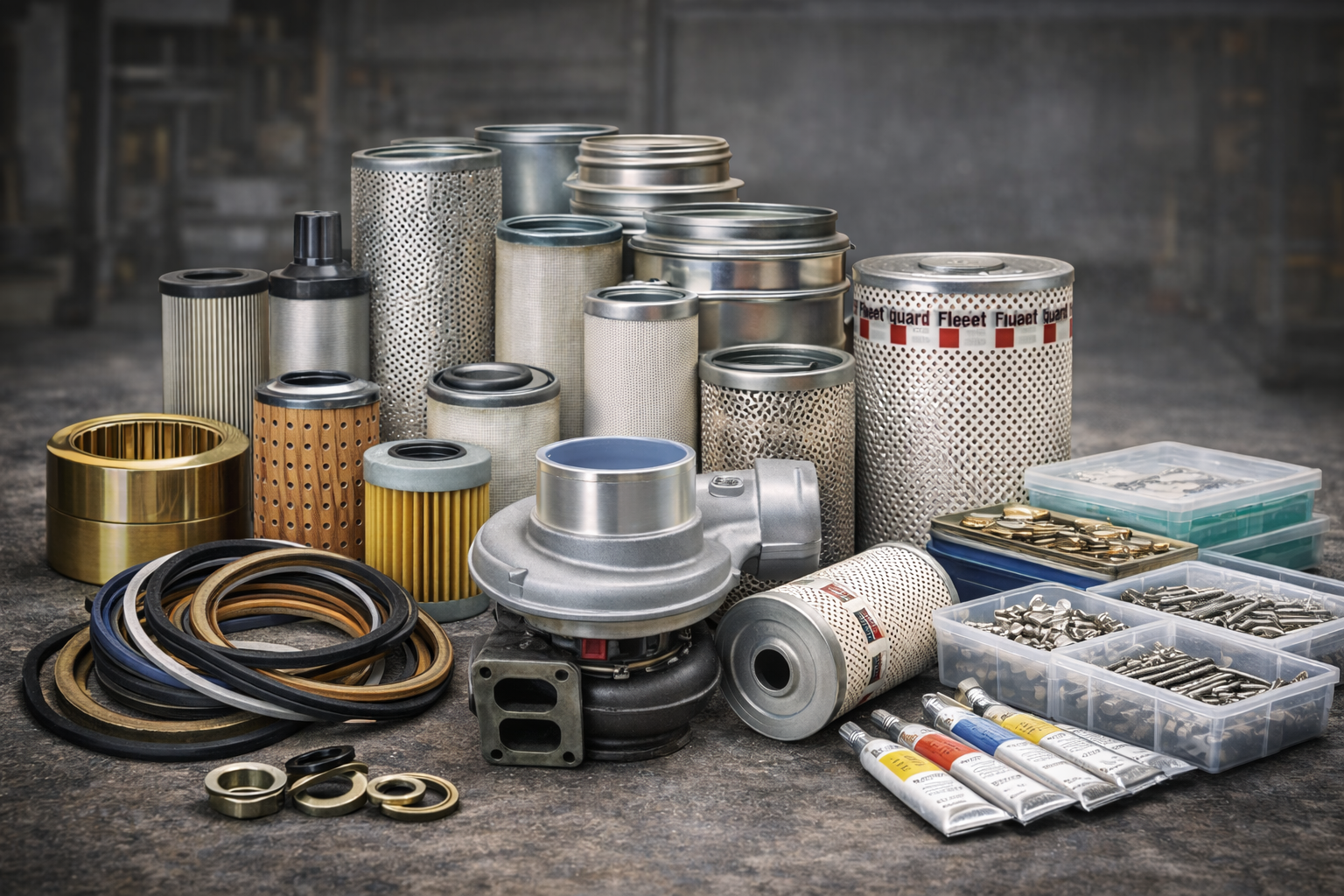

Genuine Spares & Filters
VINDRU supplies genuine spare parts for compressors, water pumps, engines, and booster systems, including filters, valves, hoses, seals, impellers, bearings, injectors, belts, and gaskets.
Used Certified Equipments
We supply refurbished and non-refurbished mining and drilling machines, fully inspected and ready to work. We offer overhauling and upgrade services for your existing drill rigs.
